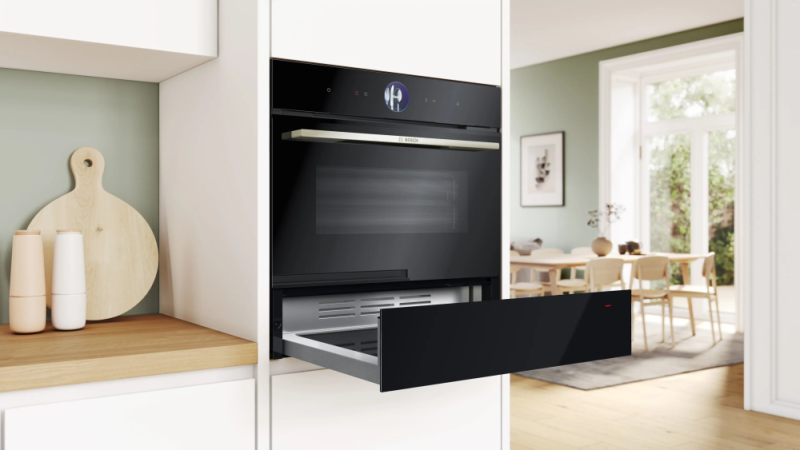

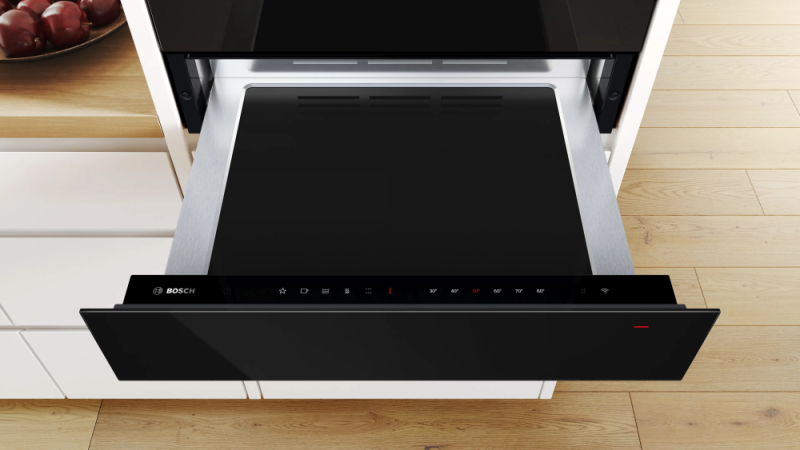

Bosch 20 L Warming Drawer BIC7101B1

PRODUCT DESCRIPTION

Brand: Bosch
Product Type: Built-in Warming Drawer
Model: BIC7101B1
Series: Series 8
Capacity: 20 Litres
Color: Black
Installation Type: Built-in

WARRANTY:
• 2 Years Comprehensive Warranty on Product
• Warranty coverage as per Bosch warranty policy

SPECIAL FEATURES:
Home Connect, Push & Pull Opening Mechanism, Slow Cooking Function, Plate Warming, Cup Warming, Keep Warm Function, Touch Controls, Toughened Glass Heating Plate, Premium Handleless Design

ABOUT THIS ITEM:

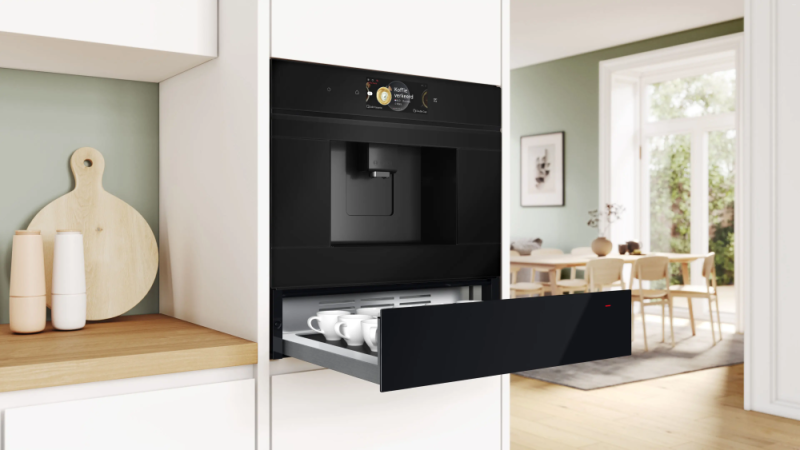

• 20 Litre Capacity: Spacious warming drawer designed to accommodate up to 12 dinner plates or 64 espresso cups, making it ideal for entertaining and family meals.

• Multifunctional Warming Drawer: Supports multiple functions including plate warming, cup warming, keeping food warm, soft steaming, and slow cooking for enhanced kitchen versatility.

• Home Connect Technology: Control and monitor the warming drawer remotely using the Home Connect app for added convenience and flexibility.

• Push & Pull Mechanism: Elegant handleless design allows smooth opening and closing with a simple push, perfectly complementing modern modular kitchens.

• Slow Cooking Function: Ideal for gentle cooking at low temperatures, helping preserve flavors and texture in meats and other dishes.

• Keep Warm Function: Maintains food at serving temperature without overcooking, ensuring dishes remain ready to serve.

• Plate & Cup Warming: Preheats plates and cups to help food and beverages stay warm longer for an enhanced dining experience.

• Toughened Glass Heating Plate: Durable glass heating surface ensures even heat distribution while simplifying cleaning and maintenance.

• Touch Control Operation: Intuitive electronic controls provide easy adjustment of temperature and operating modes.

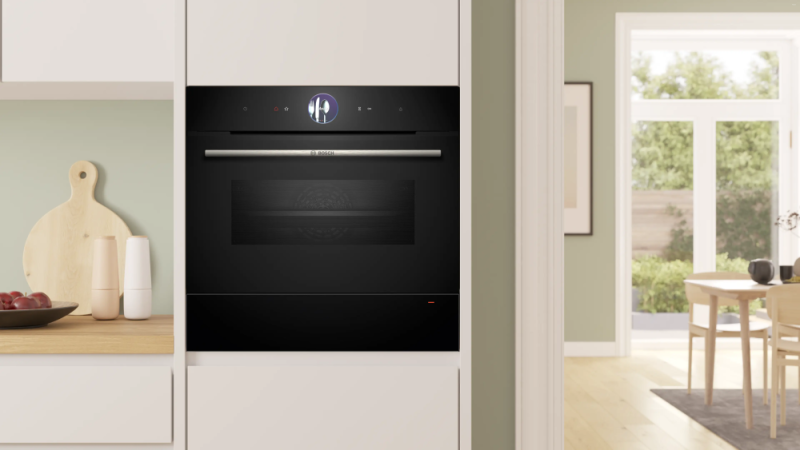

• Premium Series 8 Design: Elegant black finish integrates seamlessly with Bosch Series 8 ovens and other built-in appliances.

TECHNICAL SPECIFICATIONS:

• Product Type: Built-in Warming Drawer
• Model Number: BIC7101B1
• Series: Series 8
• Capacity: 20 Litres
• Maximum Load Capacity: 25 kg
• Maximum Plate Capacity: 12 Plates
• Maximum Cup Capacity: 64 Espresso Cups
• Temperature Range: Approx. 30°C – 80°C
• Heating Surface: Toughened Glass
• Control Type: Electronic Touch Controls
• Opening Mechanism: Push & Pull
• Home Connect: Yes
• Functions: Slow Cooking, Keep Warm, Plate Warming, Cup Warming
• Connected Load: 820 W
• Voltage: 220–240 V, 50/60 Hz
• Installation Type: Built-in

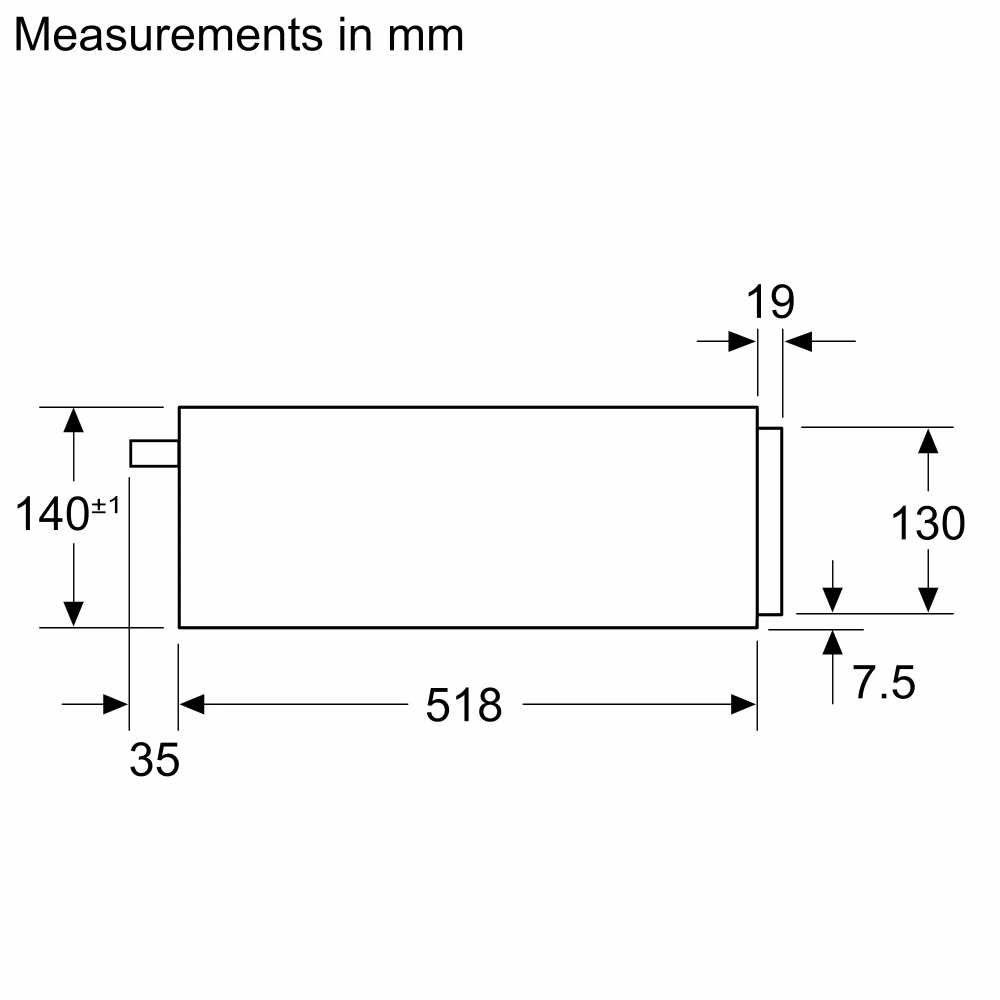

PRODUCT DIMENSIONS & WEIGHT:

• Length × Breadth × Height (L × B × H): 51.8 × 59.4 × 14.0 cm
• Required Niche Dimensions (H × W × D): 14.0 × 56.0–56.8 × 55.0 cm
• Net Weight: Approx. 18.8 kg

INSTALLATION:

• Built-in Cabinet Installation
• Designed for seamless integration with Bosch Series 8 and compatible Series 6 appliances.
• Requires dedicated electrical connection and proper cabinet niche dimensions.
• Installation should be carried out by authorized Bosch service personnel.
• Cabinet preparation and installation charges may be charged separately.
