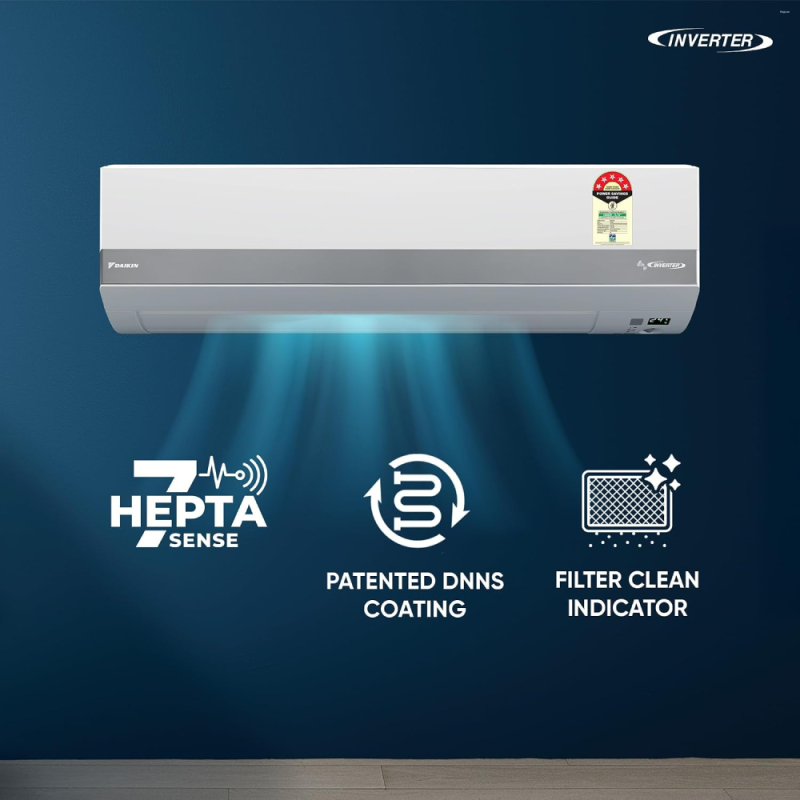

Daikin 1 Ton 5 Star Inverter Split AC Waizu Series JTKJ35XV16

PRODUCT DETAILS

Brand: Daikin
Product Type: Inverter Split Air Conditioner
Series: Waizu
Indoor Unit Model: JTKJ35XV16V
Capacity: 1 Ton
Star Rating: 5 Star
ISEER: 5.70
Colour: White with Silver Décor Strip
Compressor Type: Swing Compressor
Refrigerant: R32
Power Supply: 230 V, 50 Hz, Single Phase

KEY FEATURES

• 1 Ton 5 Star inverter split AC

• ISEER rating of 5.70

• Intelligent Eye energy-saving sensor

• Patented Streamer Discharge air purification technology

• Wi-Fi and mobile app control

• Voice control with Amazon Alexa and Google Home

• 3D Airflow for uniform cooling

• Dew Clean technology for indoor heat exchanger cleaning

• Cooling operation at ambient temperatures up to 55°C

• PM1.0 filter and antibacterial-coated pre-filter

• Power Chill and Econo Mode

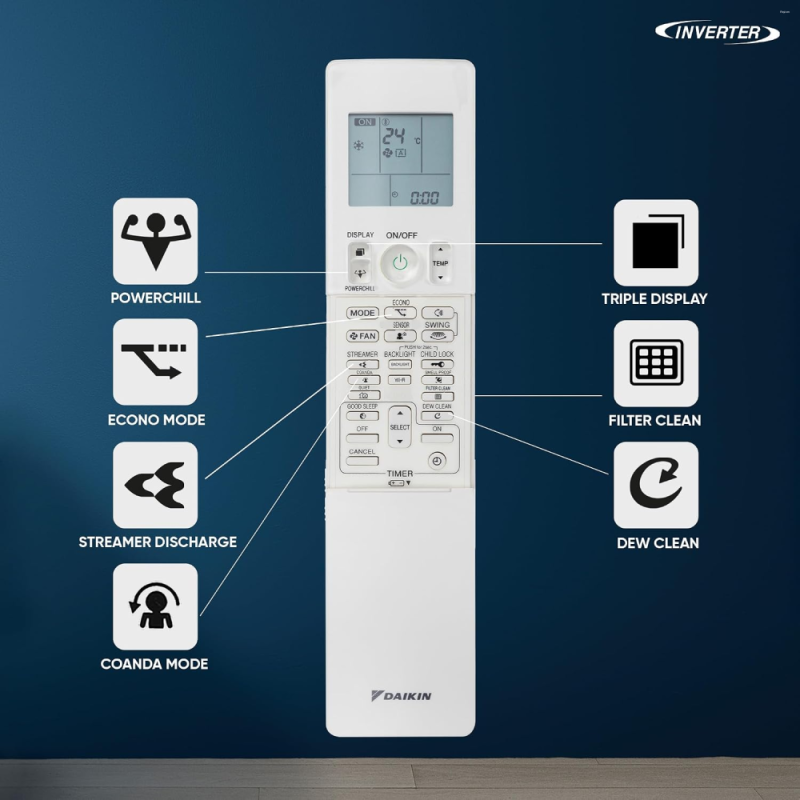

• Triple Display and backlit remote control

• Stabilizer Inside for voltage fluctuations

• Blue Fin coating for outdoor unit protection

• Child Lock and filter-clean indicator

ABOUT THIS ITEM

The Daikin Waizu Series Inverter Split AC is designed for efficient cooling in homes and small rooms. Its 3.5 kW rated cooling capacity and 5-star energy rating support everyday comfort and energy-efficient operation. Intelligent Eye, 3D Airflow, Streamer Discharge technology and Wi-Fi connectivity provide additional convenience.

TECHNICAL SPECIFICATIONS

• Rated Cooling Capacity: 3.5 kW

• Cooling Capacity Range: 1.0–4.3 kW

• ISEER: 5.70

• Annual Power Consumption: 475.37 kWh

• Voltage Range: 130–285 V

• Rated Operating Current: 3.8 A

• Airflow Rate: 523 CFM

• Minimum Indoor Sound Level: 31 dBA

• Operating Ambient Temperature: 10°C–55°C

• Refrigerant: R32

• Maximum Piping Length: 15 m

• Maximum Piping Height: 12 m

• Gas/Liquid Pipe Connection: 9.5 mm / 6.4 mm

• Connectivity: Wi-Fi, Mobile App and Voice Control

WARRANTY

• Product Warranty: 1 Year

• PCB Warranty: 5 Years

• Compressor Warranty: 10 Years

PRODUCT DIMENSIONS & WEIGHT

• Indoor Unit Dimensions (L × B × H): 89.2 × 23.1 × 29.8 cm

• Indoor Unit Net Weight: Approx. 11 kg

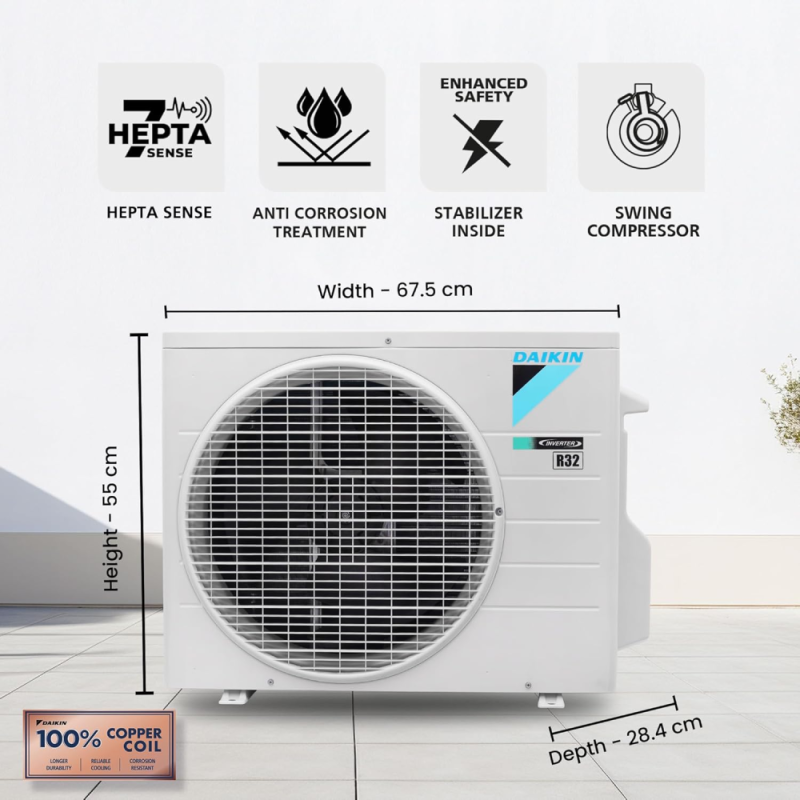

• Outdoor Unit Dimensions (L × B × H): 67.5 × 28.4 × 55 cm

• Outdoor Unit Net Weight: Approx. 24.5 kg

• Total Net Weight: Approx. 35.5 kg

IN THE BOX

• 1 Indoor Unit

• 1 Outdoor Unit

• 1 Remote Control

• User Manual and Warranty Documentation

INSTALLATION

• Installation by an authorised Daikin technician is recommended.

• Mount the indoor unit securely on a suitable wall.

• Place the outdoor unit in a well-ventilated location.

• Ensure correct refrigerant piping, drainage and electrical connections.

• Follow the manufacturer's installation guidelines.
