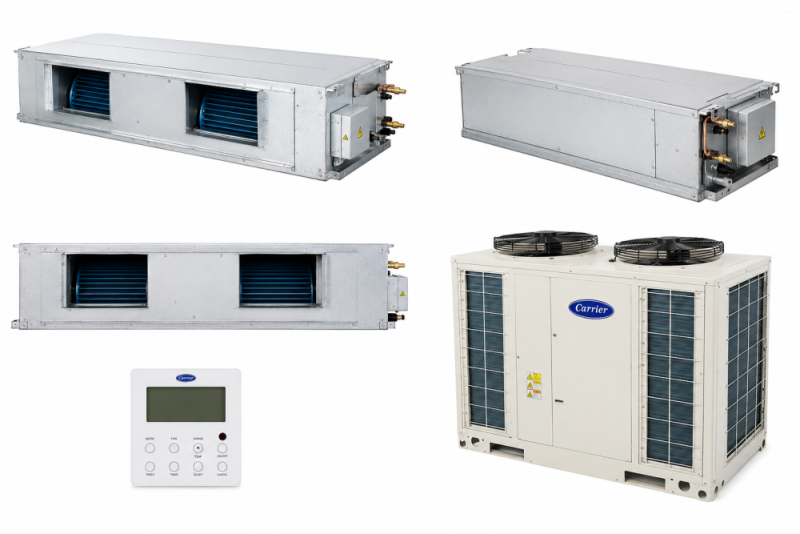

Carrier 11.0 Ton Duct Twin Circuit Air Conditioner

PRODUCT DESCRIPTION

Brand: Carrier
Product Type: Duct Twin Circuit Air Conditioner
Capacity: 11.0 Ton
Indoor Unit Model: 40LC012GC
Outdoor Unit Model: 38LH066GSM
Refrigerant: R-410A
Color: White
Installation Type: Concealed Ducted AC

WARRANTY:
• 1 Year Comprehensive Warranty on Product
• 5 Years Warranty on Compressor

SPECIAL FEATURES:
Twin Circuit Cooling System, Concealed Ducted Design, High Static Pressure, Scroll Compressor Technology, Turbo Cooling, Fresh Air Provision, Auto Restart, Self Diagnosis, Low Noise Operation, Commercial Grade Performance

ABOUT THIS ITEM:

• 11.0 Ton Capacity: Suitable for large commercial buildings, hotels, banquet halls, hospitals, shopping complexes, educational institutions, and industrial applications requiring centralized cooling.

• Twin Circuit Technology: Equipped with dual refrigeration circuits for enhanced reliability, improved efficiency, and uninterrupted cooling performance.

• Concealed Ducted Installation: Installed above false ceilings for a clean interior appearance while delivering uniform cooling through a duct network.

• High Static Pressure Design: Supports extensive duct layouts and multiple air outlets without compromising airflow performance.

• Scroll Compressor Technology: Provides reliable operation, lower vibration, higher efficiency, and long-term durability.

• Turbo Cooling Mode: Rapidly cools large spaces and maintains comfortable indoor temperatures even during peak summer conditions.

• Fresh Air Provision: Allows the introduction of fresh outdoor air to improve indoor air quality and occupant comfort.

• Low Noise Operation: Engineered for quiet performance despite its high-capacity cooling output.

• Auto Restart Function: Automatically resumes operation with previous settings after power interruptions.

• Self Diagnosis System: Continuously monitors system performance and displays fault codes for easier maintenance and troubleshooting.

TECHNICAL SPECIFICATIONS:

• Capacity: 11.0 Ton
• AC Type: Duct Twin Circuit Air Conditioner
• Installation Type: Concealed Ducted
• Refrigerant Type: R-410A
• Compressor Type: Twin Scroll Compressor System
• Cooling Capacity: Approx. 38500 Watts
• Circuit Type: Twin Refrigeration Circuit
• Static Pressure: High Static Pressure Design
• Air Distribution: Multi-Zone Ducted Airflow System
• Rated Voltage: 415V AC, 50Hz, Three Phase

PRODUCT DIMENSIONS & WEIGHT:

• Indoor Unit Dimensions (L × B × H): Approx. 180 × 95 × 45 cm
• Outdoor Unit Dimensions (L × B × H): Approx. 140 × 50 × 155 cm
• Net Weight (Indoor Unit): Approx. 110 kg
• Net Weight (Outdoor Unit): Approx. 190 kg

INSTALLATION:

• Concealed Ducted AC Installation
• Requires false ceiling, ducting network, air grilles, drain piping, and professional installation.
• Copper piping, duct fabrication, insulation, electrical cabling, and additional accessories (if required) will be charged separately.
