Toshiba 4 HP (3.0 Ton) Non-Star Cassette Air Conditioner

PRODUCT DESCRIPTION

Brand: Toshiba
Product Type: Cassette Air Conditioner
Capacity: 4 HP (3.0 Ton)

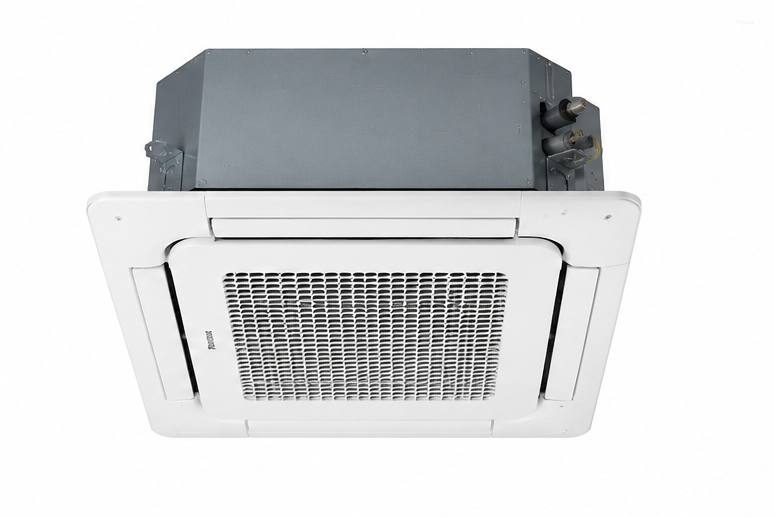

Indoor Unit Model: RAV-GV3601BP-IN

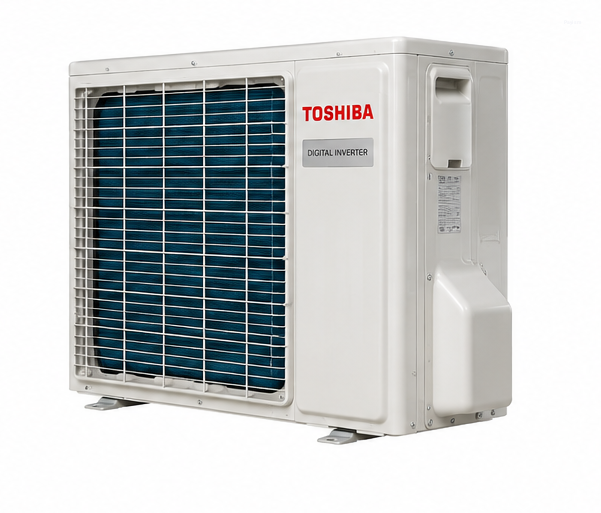

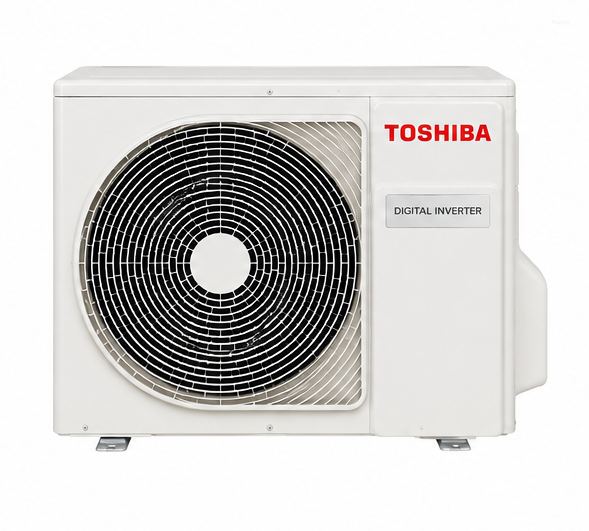

Outdoor Unit Model: RAV-GV3601AP-IN
Energy Rating: Non-Star
Refrigerant: R-32
Color: White
Installation Type: Ceiling Cassette AC

WARRANTY:
• 1 Year Comprehensive Warranty on Product
• 5 Years Warranty on PCB Controller
• 10 Years Warranty on Compressor

SPECIAL FEATURES:
360° Airflow, Ceiling Cassette Design, Twin Rotary Compressor, Turbo Cooling, R-32 Eco-Friendly Refrigerant, Fresh Air Intake Provision, Auto Restart, Self Diagnosis, Low Noise Operation, High Ambient Cooling up to 52°C

ABOUT THIS ITEM:

• 4 HP (3.0 Ton) Capacity: Ideal for banquet halls, showrooms, offices, restaurants, conference rooms, retail outlets, and large commercial spaces requiring powerful cooling performance.

• Ceiling Cassette Design: Installed within a false ceiling to provide a clean and professional appearance while maximizing usable wall and floor space.

• 360° Air Distribution: Ensures uniform airflow in all directions, delivering consistent cooling across large areas without hot spots.

• Twin Rotary Compressor: Provides faster cooling, lower vibration, quieter operation, and enhanced durability for long-term commercial use.

• Turbo Cooling Mode: Rapidly cools large spaces to achieve desired comfort levels in a shorter time.

• R-32 Refrigerant: Environment-friendly refrigerant with improved cooling efficiency and reduced environmental impact.

• High Ambient Cooling: Delivers reliable cooling performance even at outdoor temperatures up to 52°C.

• Fresh Air Intake Provision: Supports improved ventilation and better indoor air circulation.

• Low Noise Operation: Engineered for quieter performance, making it suitable for professional and commercial environments.

• Auto Restart & Self Diagnosis: Automatically resumes operation after power interruptions and assists in fault detection for easier maintenance.

TECHNICAL SPECIFICATIONS:

• Capacity: 4 HP (3.0 Ton)
• AC Type: Cassette Air Conditioner
• Installation Type: Ceiling Cassette
• Energy Rating: Non-Star
• Refrigerant Type: R-32
• Compressor Type: Twin Rotary Compressor
• Cooling Capacity: Approx. 10500 Watts
• Airflow Pattern: 360° Air Distribution
• Condenser Coil: 100% Copper
• High Ambient Cooling: Up to 52°C
• Rated Voltage: 415V AC, 50Hz, Three Phase

PRODUCT DIMENSIONS & WEIGHT:

• Indoor Unit Dimensions (L × B × H): Approx. 84 × 84 × 29 cm
• Outdoor Unit Dimensions (L × B × H): Approx. 95 × 37 × 81 cm
• Net Weight (Indoor Unit): Approx. 30 kg
• Net Weight (Outdoor Unit): Approx. 58 kg

INSTALLATION:

• Ceiling Cassette AC Installation
• False ceiling space is required for installation.
• Standard installation charges, copper piping, drain piping, electrical cabling, and additional accessories (if required) will be charged separately.
