Daikin 1.5 Ton 5 Star Inverter Split AC Waizu Series JTKJ53XV16

PRODUCT DETAILS

Brand: Daikin
Product Type: Inverter Split Air Conditioner
Series: Waizu
Indoor Unit Model: JTKJ53XV16
Outdoor Unit Model: RKJ53XV16
Capacity: 1.5 Ton
Star Rating: 5 Star
ISEER: 5.70
Colour: White with Silver Décor Strip
Compressor Type: Swing Compressor
Refrigerant: R32
Power Supply: 230 V, 50 Hz, Single Phase

KEY FEATURES

• 5-star energy-rated inverter split AC

• Intelligent Eye energy-saving sensor

• 3D airflow for uniform cooling

• Patented Streamer Discharge air purification

• Wi-Fi and mobile app control

• Voice control with Amazon Alexa and Google Home

• Dew Clean technology for indoor heat exchanger cleaning

• Air throw up to 22 metres

• Cooling operation at ambient temperatures up to 55°C

• PM1.0 air filter

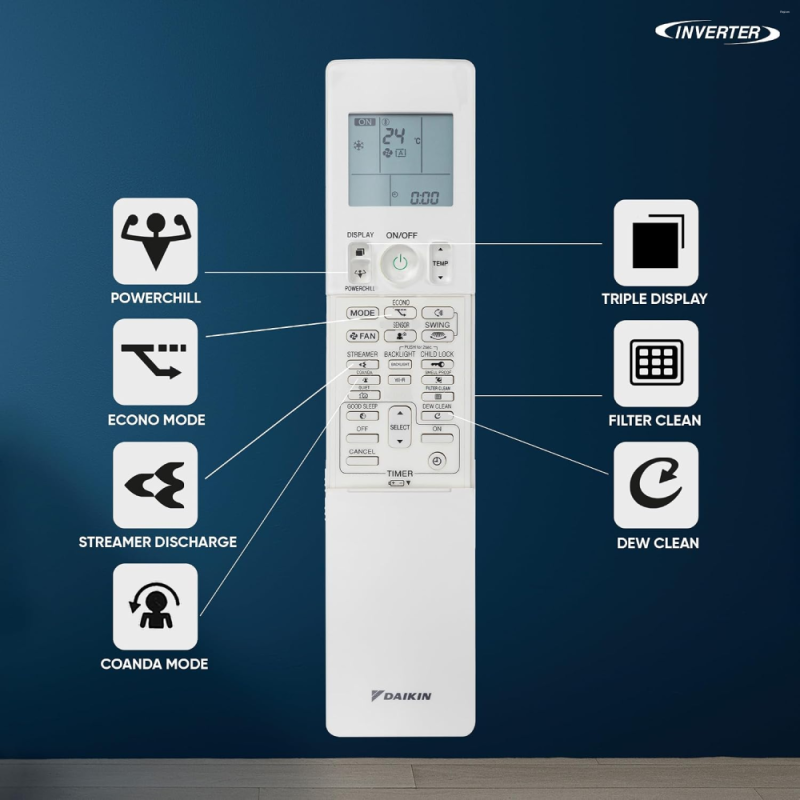

• Triple display and backlit remote control

• Stabilizer-inside feature

• Blue Fin coating for outdoor unit protection

• Child lock and filter-clean indicator

ABOUT THIS ITEM

The Daikin Waizu Series JTKJ53XV16 Inverter Split AC is designed for powerful and efficient cooling. Its 5.28 kW rated cooling capacity, Intelligent Eye sensor and 3D airflow help deliver comfortable cooling. Streamer Discharge technology, PM1.0 filtration, Wi-Fi connectivity and voice control provide added convenience for everyday use.

TECHNICAL SPECIFICATIONS

• Rated Cooling Capacity: 5.28 kW

• Cooling Capacity Range: 1.58–6.0 kW

• ISEER: 5.70

• Annual Power Consumption: 716.97 kWh

• Voltage Range: 130–285 V

• Rated Operating Current: 5.93 A

• Airflow Rate: 713 CFM

• Refrigerant: R32

• Compressor: Swing Compressor

• Maximum Piping Length: 20 m

• Maximum Piping Height: 16 m

• Air Filter: PM1.0

• Connectivity: Wi-Fi, Mobile App and Voice Control

WARRANTY

• Product Warranty: 1 Year

• PCB Warranty: 5 Years

• Compressor Warranty: 10 Years

PRODUCT DIMENSIONS & WEIGHT

• Indoor Unit Dimensions (L × B × H): 106.5 × 28 × 32.5 cm

• Indoor Unit Net Weight: Approx. 16 kg

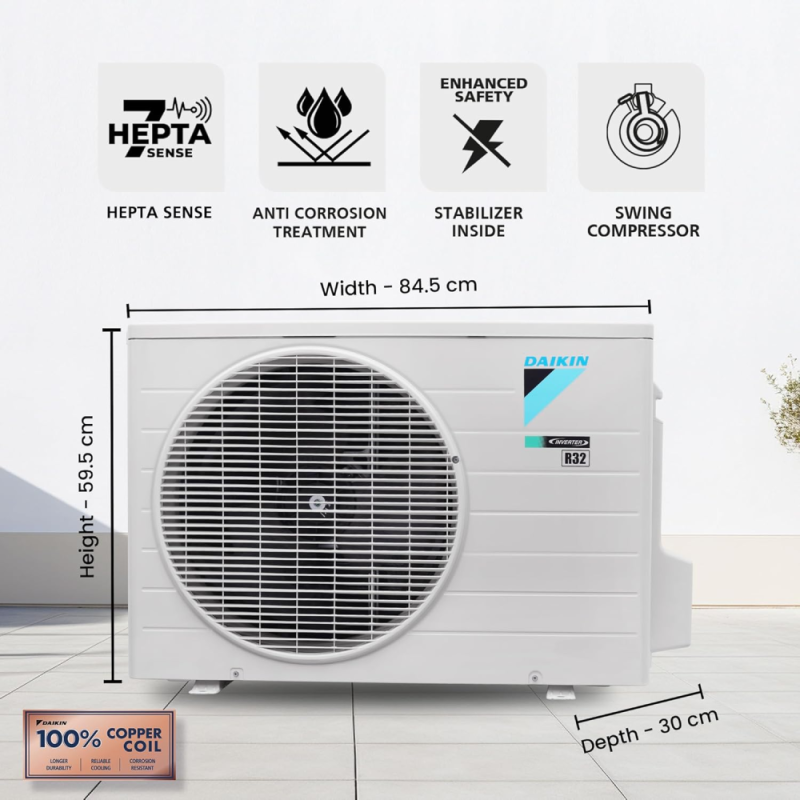

• Outdoor Unit Dimensions (L × B × H): 84.5 × 30 × 59.5 cm

• Outdoor Unit Net Weight: Approx. 32.4 kg

• Total Net Weight: Approx. 48.4 kg

INSTALLATION

• Installation by an authorised Daikin technician is recommended.

• Mount the indoor unit securely on a suitable wall.

• Place the outdoor unit in a well-ventilated location.

• Ensure proper refrigerant piping, drainage and electrical connections.

• Follow the manufacturer's installation guidelines.
