Daikin 1.4 Ton 3 Star Inverter Split AC Standard Series FTKC48XV16

PRODUCT DETAILS

Brand: Daikin
Product Type: Inverter Split Air Conditioner
Series: Standard Series
Indoor Unit Model: FTKC48XV16
Capacity: 1.4 Ton
Star Rating: 3 Star
ISEER: 4.40
Colour: White
Compressor Type: Swing Compressor
Refrigerant: R32
Condenser Coil: Copper
Power Supply: 230 V, 50 Hz, Single Phase

KEY FEATURES

• 1.4 Ton inverter split AC

• 3-star energy rating with ISEER of 4.40

• Swing compressor technology

• Power Chill for faster cooling

• Dew Clean technology for indoor heat exchanger cleaning

• 7 Hepta Sense intelligent sensors

• Econo Mode for energy-saving operation

• Stabilizer-free operation within the specified voltage range

• Anti-bacterial coated pre-filter

• Power Airflow Dual Flaps for air distribution

• Triple Display and display-off function

• Self-diagnosis and filter-clean indicator

• Blue Fin coating for outdoor unit protection

• Child Lock and multi-layer fire safety

ABOUT THIS ITEM

The Daikin FTKC48XV16 Standard Series Inverter Split AC is designed for efficient everyday cooling. Its 4.8 kW rated cooling capacity, inverter technology and Swing Compressor support consistent performance. Features such as Power Chill, Dew Clean, Econo Mode and 7 Hepta Sense provide convenient cooling, maintenance and energy-management functions.

TECHNICAL SPECIFICATIONS

• Rated Cooling Capacity: 4.8 kW

• Cooling Capacity Range: 1.9–5.2 kW

• Rated ISEER: 4.40

• Annual Power Consumption: 845.02 kWh

• Power Consumption: Approx. 1550 W

• Voltage Range: 130–285 V

• Rated Power Supply: 220–240 V, 50 Hz, single phase

• Airflow Rate: Approx. 547 CFM

• Operating Ambient Temperature: 20°C–52°C

• Minimum Indoor Sound Level: 32 dBA

• Refrigerant: R32

• Maximum Piping Length: 20 m

• Maximum Piping Height: 16 m

• Air Filter: Anti-bacterial coated pre-filter

WARRANTY

• Product Warranty: 1 Year

• PCB Warranty: 5 Years

• Compressor Warranty: 10 Years

PRODUCT DIMENSIONS & WEIGHT

• Indoor Unit Dimensions (L × B × H): 88.5 × 22.9 × 29.8 cm

• Indoor Unit Net Weight: Approx. 10.5 kg

• Outdoor Unit Dimensions (L × B × H): 84.5 × 30 × 59.5 cm

• Outdoor Unit Net Weight: Approx. 26.5 kg

• Total Net Weight: Approx. 37 kg

IN THE BOX

• 1 Indoor Unit

• 1 Outdoor Unit

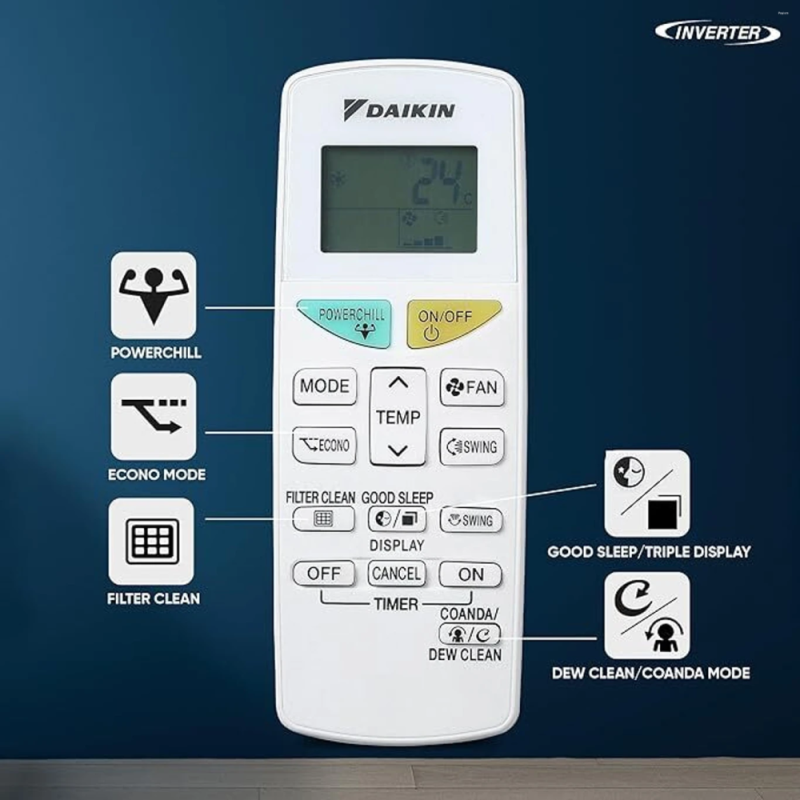

• 1 Remote Control

• 1 Installation Kit

• 1 User Manual

• 1 Warranty Card

INSTALLATION

• Installation by an authorised Daikin technician is recommended.

• Mount the indoor unit securely on a suitable wall.

• Place the outdoor unit in a well-ventilated location.

• Ensure correct refrigerant piping, drainage and electrical connections.

• Follow the manufacturer's installation guidelines.
