Midea 1 Ton 3 Star Inverter Split AC – SANTIS MAX DLX (MAI12SD3R36F0)

PRODUCT DETAILS

Brand: Midea
Product Type: Inverter Split Air Conditioner
Capacity: 1.0 Ton
Model: MAI12SD3R36F0
Series: SANTIS MAX DLX
Star Rating: 3 Star
Refrigerant: R32
Rated Power Supply: 230 V, 1 Phase, 50 Hz
Maximum Cooling Capacity: 4080 W
Rated Cooling Capacity: 3400 W
Half Load Cooling Capacity: 1700 W
Rated Power Input: 985 W
Half Load Power Input: 365 W
ISEER: 4.35 W/W
Annual Power Consumption: 604.99 kWh
Rated Current: 4.3 A
Air Flow Rate: 380 CFM
Indoor Noise Level: 40 / 38 / 32 dB
Colour: White

WARRANTY:
• 1 Year Comprehensive Product Warranty
• 5 Years Warranty on Compressor

KEY FEATURES:
• 1.0 Ton Capacity
• 3 Star Energy Rating
• Inverter Technology
• R32 Refrigerant

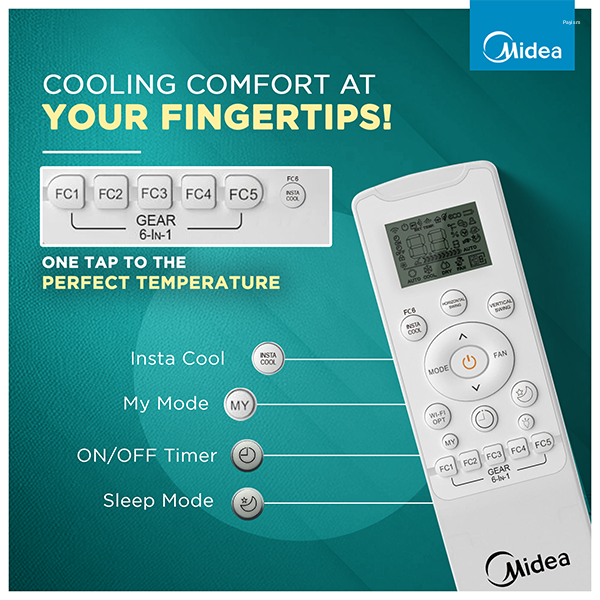

• 6-in-1 Gear Control
• Insta Cool / Turbo
• PM2.5 Filter
• Refrigerant Leakage Detector
• Prime Guard Hydro Blue Fin Coating
• Auto Cleaner
• Follow Me
• Auto Restart
• Sleep Mode
• Auto Swing
• Dry Mode
• Security Lock
• Hidden Display
• Stabilizer-Free Operation

ABOUT THIS ITEM:
• 1.0 Ton Capacity: Suitable for cooling smaller rooms and spaces.
• Inverter Technology: Adjusts compressor operation according to cooling demand for consistent and efficient cooling.
• 6-in-1 Gear Control: Provides multiple cooling and power-control levels according to your requirements.
• Insta Cool / Turbo: Provides rapid cooling for quicker comfort.
• PM2.5 Filter: Helps filter fine dust particles and pollutants from the air.
• Refrigerant Leakage Detector: Helps detect refrigerant leakage and provides an alert.
• Prime Guard Hydro Blue Fin Coating: Helps protect the heat exchanger against corrosion.
• Auto Cleaner: Uses defrost-clean technology to help maintain a cleaner indoor unit.
• Follow Me: Uses the temperature around the remote control to help regulate cooling.
• Stabilizer-Free Operation: Designed to operate within the specified voltage range without requiring a separate stabilizer.

COOLING & PERFORMANCE SPECIFICATIONS:
• Capacity: 1.0 Ton
• Maximum Cooling Capacity: 4080 W
• Rated Cooling Capacity: 3400 W
• Half Load Cooling Capacity: 1700 W
• Rated Power Input: 985 W
• Half Load Power Input: 365 W
• Star Rating: 3 Star
• ISEER: 4.35 W/W
• Annual Power Consumption: 604.99 kWh
• Air Flow Rate: 380 CFM
• Indoor Noise Level: 40 / 38 / 32 dB
• Rated Voltage: 230 V
• Rated Frequency: 50 Hz
• Rated Current: 4.3 A

FILTERS & AIR QUALITY:
• Conventional HD Filter
• PM2.5 Micron Filter
• Refrigerant Leakage Detector
• Auto Cleaner

CONVENIENCE & SAFETY FEATURES:
• Auto Restart
• Auto On/Off Timer
• Sleep Mode
• Follow Me
• Auto Fan Speed
• Auto Swing
• Dry Mode
• Security Lock
• Hidden Display
• Intelligent CRF Alert
• Stabilizer-Free Operation
• Louver Position Memory
• Double Drain

DESIGN & ADDITIONAL FEATURES:
• Body Colour: White
• Indoor Unit: 800 × 188 × 275 mm
• Outdoor Unit: 720 × 270 × 480 mm
• Indoor Unit Weight: 10.1 kg
• Outdoor Unit Weight: 21 kg
• Installation Type: Wall Mounted

PRODUCT DIMENSIONS & WEIGHT:
• Indoor Unit Dimensions (L × B × H): 80 × 18.8 × 27.5 cm
• Outdoor Unit Dimensions (L × B × H): 72 × 27 × 48 cm
• Indoor Unit Weight: 10.1 kg
• Outdoor Unit Weight: 21 kg

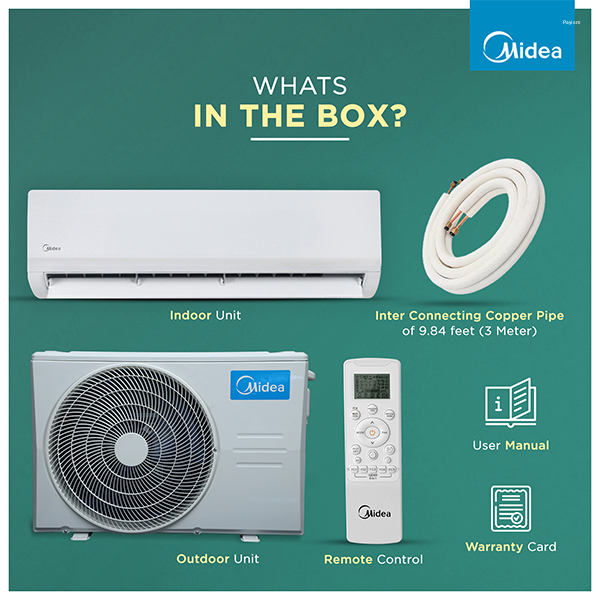

IN THE BOX:
• Indoor Unit
• Outdoor Unit
• Connecting Kit Pipe
• Remote Control
• User Manual
• Warranty Card

INSTALLATION:
• Installation should be carried out by an authorized Midea service technician.
• Ensure proper electrical connection and earthing before installation.
• The indoor and outdoor units should be installed on suitable, stable surfaces.
• Ensure proper refrigerant piping, drainage and electrical connections during installation.
