Midea 1 Ton 5 Star Wi-Fi Inverter Split AC – SANTIS PRO-X RYL (MAI12SP5R35W0)

PRODUCT DETAILS

Brand: Midea
Product Type: Inverter Split Air Conditioner
Capacity: 1.0 Ton
Model: MAI12SP5R35W0
Series: SANTIS PRO-X RYL
Star Rating: 5 Star
Refrigerant: R32
Rated Power Supply: 230 V, 1 Phase, 50 Hz
Maximum Cooling Capacity: 4080 W
Rated Cooling Capacity: 3500 W
Half Load Cooling Capacity: 1750 W
Rated Power Input: 840 W
Half Load Power Input: 334 W
ISEER: 5.05 W/W
Annual Power Consumption: 536.2 kWh
Rated Current: 3.7 A
Air Flow Rate: 500 CFM
Indoor Noise Level: 43 / 41 / 35 dB
Colour: White

WARRANTY:
• 1 Year Comprehensive Product Warranty
• 5 Years Warranty on PCB
• 10 Years Warranty on Compressor

KEY FEATURES:
• 1.0 Ton Capacity
• 5 Star Energy Rating
• Inverter Technology
• R32 Refrigerant
• Wi-Fi 2.0 (AI+)
• 6-in-1 Gear Control
• Dynamic LED Display
• 4-Way Swing
• PM2.5 Filter
• Top HD Filter
• Refrigerant Leakage Detector
• Insta Cool / Super Turbo
• Auto Cleaner
• Follow Me
• Auto Restart
• Sleep Mode
• Dry Mode
• Security Lock
• Stabilizer-Free Operation
• High Ambient Cooling up to 54°C

ABOUT THIS ITEM:
• 1.0 Ton Capacity: Suitable for cooling smaller rooms and spaces.
• Wi-Fi 2.0 (AI+): Enables smart control and AI-powered features through the Midea smart platform.
• 6-in-1 Gear Control: Provides multiple cooling levels to balance cooling performance and energy consumption.
• Dynamic LED Display: Provides clear visibility of important AC information.
• 4-Way Swing: Distributes cool air in multiple directions for more even room cooling.
• PM2.5 Filter: Helps filter fine dust particles from the air.
• Top HD Filter: Provides additional filtration for cleaner air.
• Refrigerant Leakage Detector: Detects refrigerant leakage and provides an alert.
• Insta Cool / Super Turbo: Provides rapid cooling for quicker comfort.
• Auto Cleaner: Helps maintain a cleaner indoor unit by reducing moisture accumulation.
• Follow Me: Uses the temperature around the remote control to help regulate cooling.
• High Ambient Cooling: Designed to operate at ambient temperatures up to 54°C.
• Stabilizer-Free Operation: Designed to operate within the specified voltage range without requiring a separate stabilizer.

COOLING & PERFORMANCE SPECIFICATIONS:
• Capacity: 1.0 Ton
• Maximum Cooling Capacity: 4080 W
• Rated Cooling Capacity: 3500 W
• Half Load Cooling Capacity: 1750 W
• Rated Power Input: 840 W
• Half Load Power Input: 334 W
• Star Rating: 5 Star
• ISEER: 5.05 W/W
• Annual Power Consumption: 536.2 kWh
• Air Flow Rate: 500 CFM
• Indoor Noise Level: 43 / 41 / 35 dB
• Rated Voltage: 230 V
• Rated Frequency: 50 Hz
• Rated Current: 3.7 A

FILTERS & AIR QUALITY:
• Top HD Filter
• PM2.5 Micron Filter
• Refrigerant Leakage Detector
• Auto Cleaner

SMART & CONVENIENCE FEATURES:
• Wi-Fi 2.0 (AI+)
• Google Action Support
• Amazon Alexa Support
• 6-in-1 Gear Control
• Auto Restart
• Auto On/Off Timer
• Sleep Mode
• Follow Me
• Auto Fan Speed
• Auto Swing
• Dry Mode
• Security Lock
• Hidden Display
• Intelligent CRF Alert
• Louver Position Memory
• Double Drain
• Silent Mode
• My Mode

DESIGN & ADDITIONAL FEATURES:
• Body Colour: White

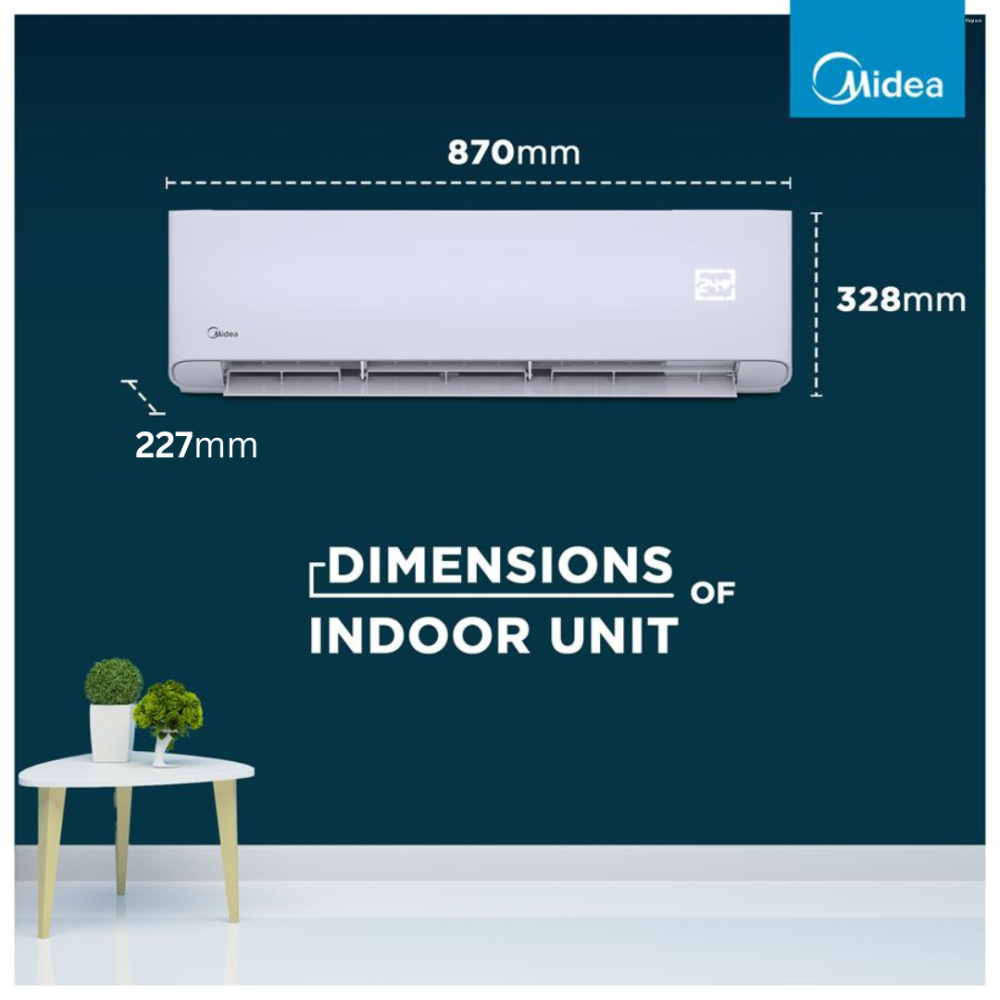

• Indoor Unit: 870 × 227 × 328 mm
• Outdoor Unit: 790 × 280 × 540 mm
• Indoor Unit Weight: 10 kg
• Outdoor Unit Weight: 26 kg
• Installation Type: Wall Mounted

PRODUCT DIMENSIONS & WEIGHT:
• Indoor Unit Dimensions (L × B × H): 87 × 22.7 × 32.8 cm
• Outdoor Unit Dimensions (L × B × H): 79 × 28 × 54 cm
• Indoor Unit Weight: 10 kg
• Outdoor Unit Weight: 26 kg

IN THE BOX:
• Indoor Unit
• Outdoor Unit
• Connecting Kit Pipe

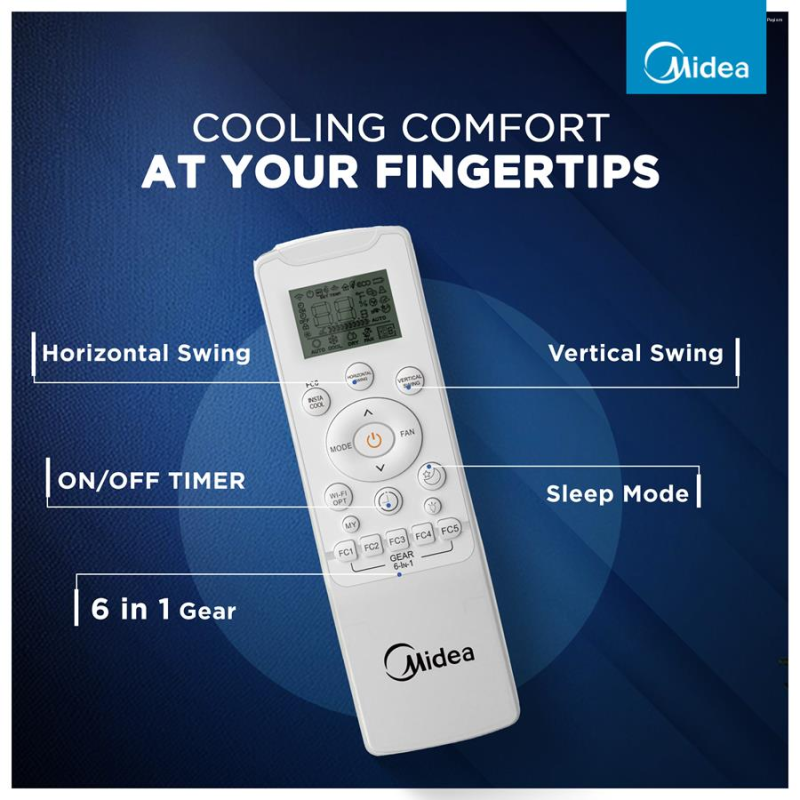

• Remote Control
• User Manual
• Warranty Card

INSTALLATION:
• Installation should be carried out by an authorized Midea service technician.
• Ensure proper electrical connection and earthing before installation.
• The indoor and outdoor units should be installed on suitable, stable surfaces.
• Ensure proper refrigerant piping, drainage and electrical connections during installation.
